TB100 Crash Rated Bollards as Portable Barricade Systems

TB100 High Security Portable Bollards Provide Special Event Barriers

Certified by: Meet U.S. Department of State standards
Certification Level:
ASTM M30/P3 Crash Rated in array of 5
Gross Vehicle Weight:
15,000 pounds/66.7 kN
Crash Speed:
30 mph/48 kph
US Patent #10941531B2
US Patent #10,407,852 B2
US Patent #D903906A1
Australian Design Patent #201812454
Australian Design Patent #201812455

The new patent-pending TB100 crash-rated portable bollards allows law enforcement and security providers to quickly create high security special event barricades that block access to temporary venues where vehicles can be used as weapons against large numbers of pedestrians. Individual portable security bollards provide vehicle barricades in applications such as heavily traveled narrow walkways and roadways or any area that a vehicle can get through. They can also be used as substitutes until permanent bollard systems get installed. The omni-directional design absorbs impact from any angle and its quick deployment enables protection that slows, trips and arrests intruding vehicles without difficulty of a major barricade installation.

Delta’s TB100 Portable Bollards

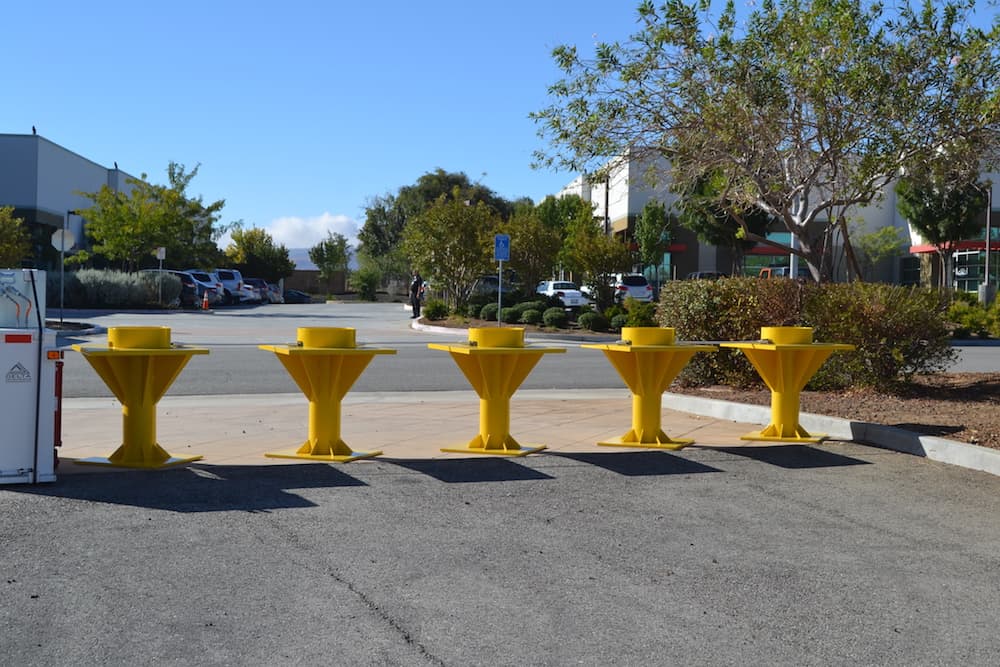

Up to five TB100 portable bollards can be linked together with a cable system and be placed on a road’s surface to create immediate protection for a span of 20 feet (6 m). This formation creates a portable and temporary security fence protecting events or other situations in need of vehicle flow protection. These event barricade portable bollard systems requires no other installation procedures, no excavations and no sub-surface preparations. Certified testing demonstrates that a TB100 portable bollard will stop and disable a 15,000 pound (6,804 kg) vehicle traveling at 30 mph (48.3 kph), resulting in an ASTM M30, P3 rating. A single TB100 bollard absorbs 400,000 foot pounds of kinetic energy.

TB100 Portable Bollards Crash Test

Delta Scientific Senior Vice President, David Dickinson, emphasizes “This is a remarkable result for a light-weight portable bollard system that requires no excavation or attachment to the roadway. It can be placed on any stable surface such as concrete, asphalt, compacted soil or vegetation to quickly protect people and property against aggravated automobile or truck assault.”

According to Dickinson, the TB100 temporary high security bollards can be used to close off streets, entrances or wide expanses such as access to pedestrian areas or even airport runways. They can be installed in conjunction with Delta’s popular MP5000 portable barricade to fill in any gaps to protect people and critical infrastructures at public events such as parades, festivals, sporting weekends and any place that vehicles could attack transitory events. The combination of the portable barriers with the new portable crash rated fence bollards provides fast controlled vehicle access without the time and labor of installation.

Portable Bollards Make Financial Sense

“From a purchasing standpoint, it can be easier to buy portable bollards and barricades than permanent solutions,” adds Dickinson. “The latter are oftentimes placed into an organization’s real assets budget because they are permanently installed into the ground, becoming part of the property. Such budgets can often create complex purchasing scenarios for law enforcement or public safety departments. However, purchasing portable bollards and barricades is no different than buying protective vests for personnel or new sets of wrenches for the maintenance department.”

Security Portable Bollards for Special Events

TB100 Portable Barrier Pedestrian Protection

TB100 Trailer & Mover

Specifications & Resources

TB100 Procurement Specification

TB100 General Arrangement

TB100 General Arrangement (TB125)
