DSC7500 Beam Barricades

K Rated Barrier: Certified K-12 Crash Rating
Installation Design: Shallow Foundation Beam Barrier
Model #: DSC7500

The DSC7500 swing beam barricade is designed to close off one or two lanes of a roadway and provide counter terrorist level protection against vehicle attack. The barricade stops a 15,000-pound (66.7 kN) vehicle traveling 50 mph (80 kph) with zero penetration, equivalent to 1.2-million foot-pounds of kinetic energy. It meets the K12 crash certification standard set by the United States Department of State.

The DSC7500 is supplied as an easy to use manual gate or powered with full automation features. Other versions of the DSC7500 Series include a full swing gate with anti-climb features that can replace existing non-rated swing gates.

DSC7500 Beam Barricade

DSC7500 Beam Barricade Crash Test

A cantilevered sliding gate with the DSC7000 series crash beam is also available with the full crash rating. The DSC7500 has been tested to the United Kingdom BSI Standard PAS:68 2007 CrashTest. 7.5 Tonne EU truck at 80 kph. Zero penetration. The beam held and was wedged in place.

Second attack readiness demonstrated. Barrier Clear Opening. The standard clear opening shall be 144 inches (3,66 M) as measured inside to inside of the hinge and locking buttress. The Barrier can be specified with a clear opening up to 360 inches [9,14 M].

Delta Scientific certifies the The DSC7000 beam has been tested to the United Kingdom BSI Standard PAS:68 2007 in the DSC7500 configuration. Crash tested with a 7.5 Tonne EU truck at 80 kph. Zero penetration. The beam held and was wedged in place. Second attack readiness

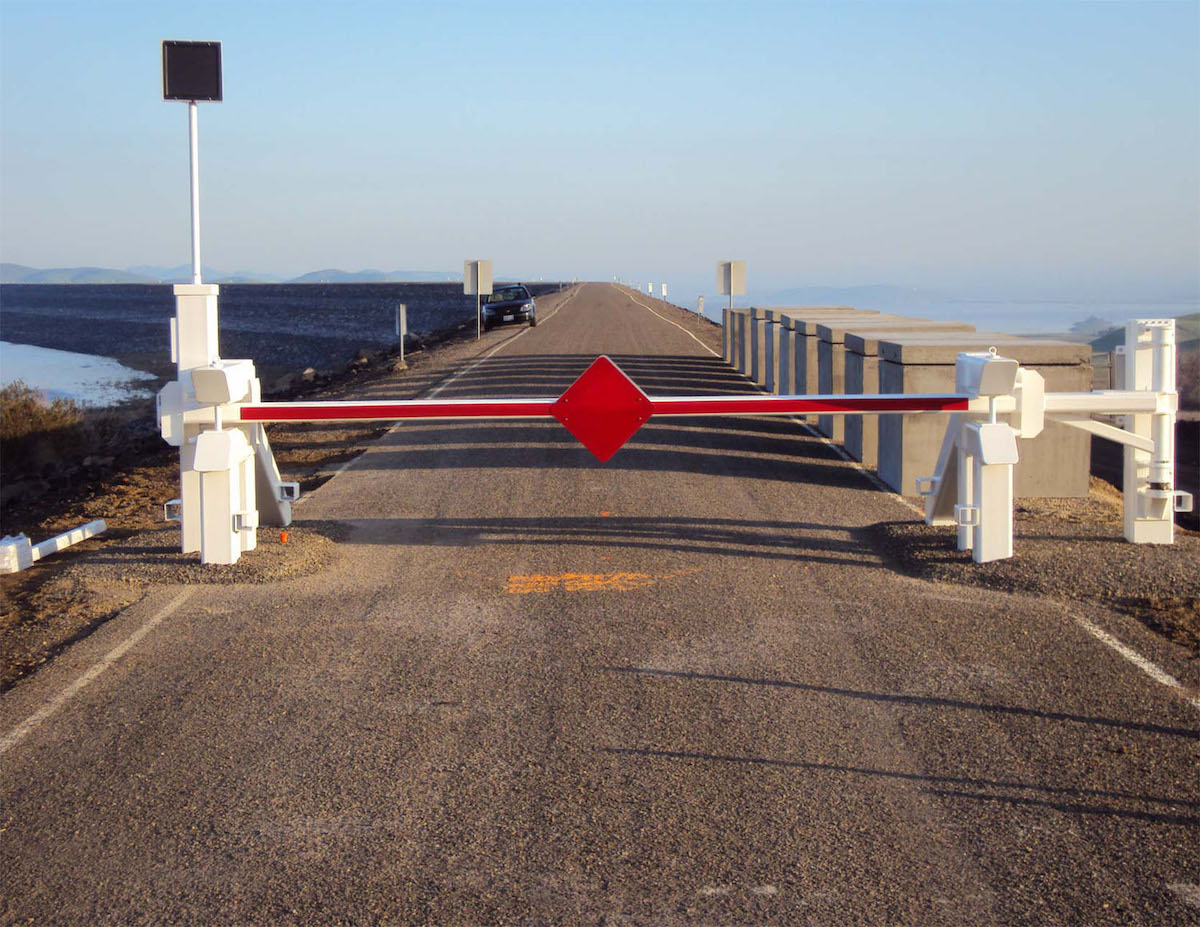

DSC7500 Beam Barricade Right Abuttment

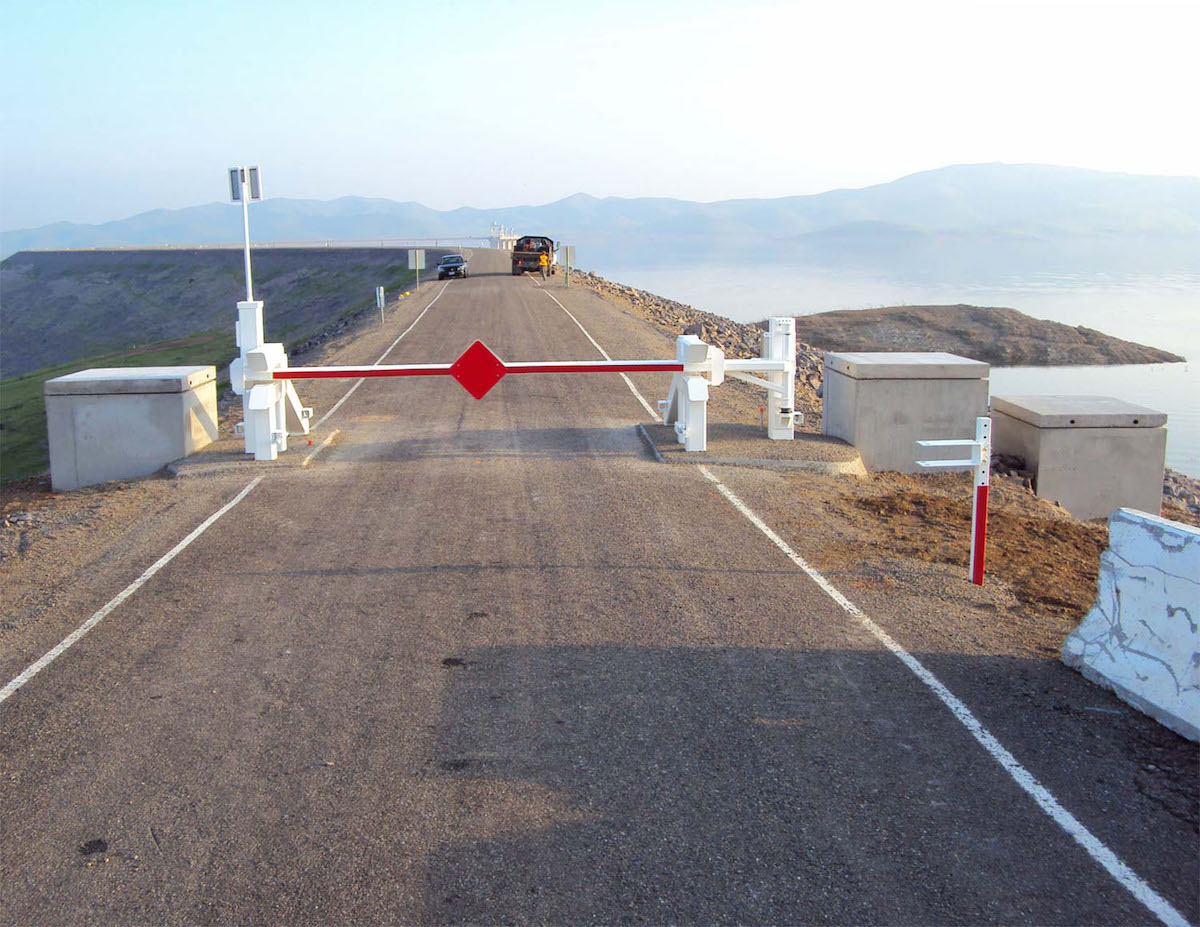

DSC7500 Beam Barricade Left Abuttment

DSC7500 Beam Barricade Left Abuttment

DSC7500 Beam Barricade Right Abuttment

DSC7500 Beam Barricade Installation


Specifications & Resources

DSC7500 Beam Barricades Specifications – (Manual)

DSC7500 Beam Barricades Specifications – (Hydraulic)

DSC7500 Beam Barricades Specifications – (MBR)

DSC7500 Gate Foundation Specifications

DSC7500 Beam Barricade Foundation Specifications

DSC7500 Beam Barricade Brochure
