Wedge Barricade HD200

Delta HD200 High Security Barrier

ASTM M30/P1 Crash Rated Barrier

Installation Design: Shallow Foundation Barrier
Model #: HD200

Emergency Fast Operation (EFO) provides increased safety against terrorists using vehicles as weapons.

The breakthrough HD200, was built for high traffic locations requiring rapid emergency fast operation (EFO) rates and open/close cycles. With a 0.63 second EFO and a 2-5 second normal operation rate, the HD200 is the fastest operating standard vehicle barrier in the market. In addition, it features a crash rating of ASTM M30/P1. That means it will bring to a full stop a 7.5 ton (6803.9 kg) medium duty truck travelling 30 mph (48.3 kph) in less than 3.3 feet (1 meter).  In fact, the truck rebound after impacting the barrier was an incredible 11.5 feet.

“The HD200 is truly a breakthrough vehicle barrier,” explains Greg Hamm, Delta Scientific vice president, marketing and sales. “A vehicle moving at 30 mph will travel 44 feet per second.  With a 0.63 second EFO speed, if triggered within 50 feet of the barrier, will still stop and destroy the attacking vehicle.  As the tragedy in Nice has warned so many security professionals, we need to be aware of vehicle attacks. Especially in high traffic locations, we need high speed open/close rates to get the many vehicles in and out.  Likewise, in densely occupied locations, we need very fast closing rates to protect the people. In high volume locations, the barrier is open much of the time. Therefore, when the location is heavily populated as well, we need the barrier to open and close frequently but, as importantly, close quickly.”

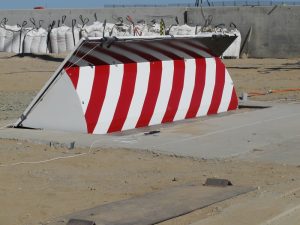

HD200 High Security Wedge Barricade

HD200 High Security Wedge Barricade Installed | Delta Scientific

HD200 Wedge Barricade Crash Test

With a 24-inch (61 cm) shallow foundation and fully enclosed, flush mount design, the HD200 Security Barricade obviates the concerns of interference with buried pipes, power lines and fiber optic communication lines in urban applications. The shallow foundation also reduces installation complexity, time, materials and corresponding costs. The HD200 is perfect for high water table locations and areas with corrosive soils. It provides low maintenance as its totally enclosed face is easily removed for access.

Leveraging the latest technologies, the HD200’s breakthrough EFO can be remotely controlled via fiber optics, touch screen control panels, NEMA rated control button panels and simple key switches. The HD200 barrier also features a full range of diagnostic indicators for early detection of any difficulties.

As with most other Delta barricades and barriers that are properly maintained, projected life expectancy of the HD200 is 20+ years.

HD200 High Security Stopping Barrier

HD200 High Security Barricade Impact Result

Specifications & Resources

General Arrangement
Drawing

HD200 Foundation Drawing

HD200 Procurement Specification

Delta HD200 High-Sec Barrier Brochure

Other Wedge Barricades

Surface Mounted Barricades TW2015

Surface Mounted Barricades TW2015

The TW2015 Hydraulic Wedge Barricade System is a one-inch thick ramp that features quick installation. It is designed to install at difficult locations such as parking structure ramps or areas with sub-surface drainage problems and used for intermediate security applications.
Surface Mounted Barricade DSC1425

Surface Mounted Barricade DSC1425

This quick installation surface mounted barrier has a single buttress that houses all the necessary components to run the unit. Simply bring in power to the buttress side of the barrier and run your control wire to your desired location and you are ready to go. This barrier can be left handed and right handed to cover larger openings or orient the barrier as needed for power.
Wedge Barricade TT207SFM

Wedge Barricade TT207SFM

The TT207SFM is a K12 rated barricade 15,000 pound truck at 50 mph. It comes in two versions, surface mounted for parking ramps and with the standard 13 inch foundation. This high security barricade is also available with a debris screen. When the K-12 barricade is in the up position, the hydraulics are protected by the heavy metal ramp plate. Widths available: 12 foot to 24 foot clear opening.
